Tungsten carbide ATOM 01030728 blade for cutting foam leather plotter knives

Short Description:

Chengdu Passion Precision Tool Co.,Ltd. supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.


Product Detail

Product Tags

Product introduction

Plotter blade ATOM 01030728 cutting depth 6 mm,Plotter blade ATOM 01030728 is made of 100% Tungsten Carbide which guarantees extreme durability and performance. Standard blades are suitable for ATOM cutting machines.
ATOM OEM Code:
Atom 01030728, Atom 01030729, Atom 01030730, Atom 01030731, Atom 01030773, Atom 01030774, Atom 01030755, Atom 01030766, Atom 01030782, Atom 01030793, Atom 01030910, Atom 010333375, Atom 01033855, Atom 01033856, Atom 01033857, Atom 01033858, Atom 01033925, Atom 01039893, Atom 01039894, Atom 01039895, Atom 01039896, Atom 01039897, Atom 01039899.

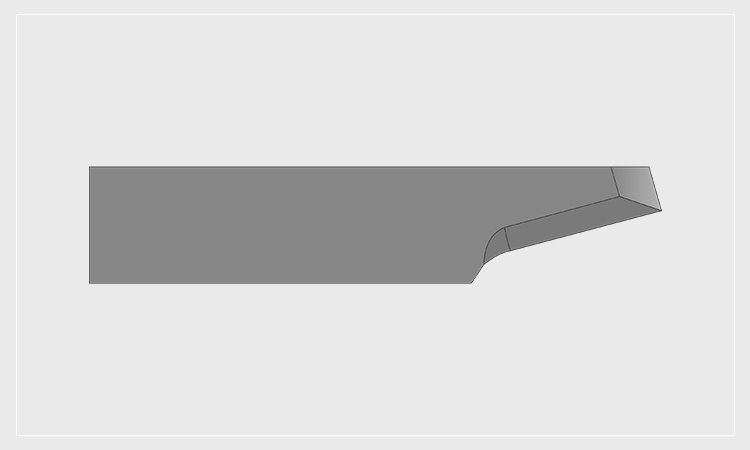

ATOM blade

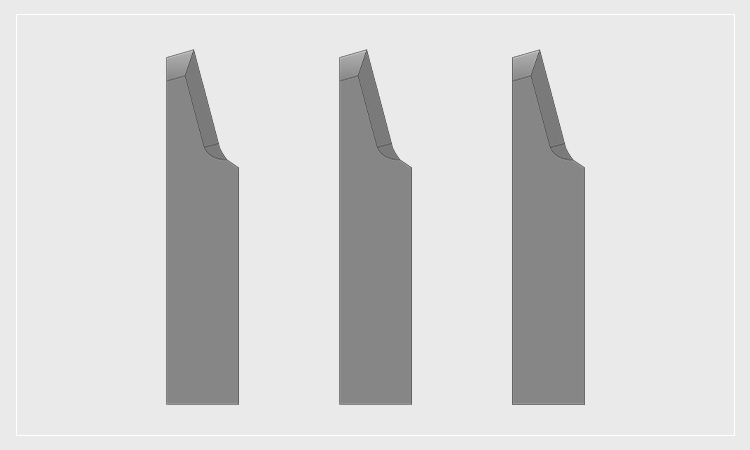

ATOM

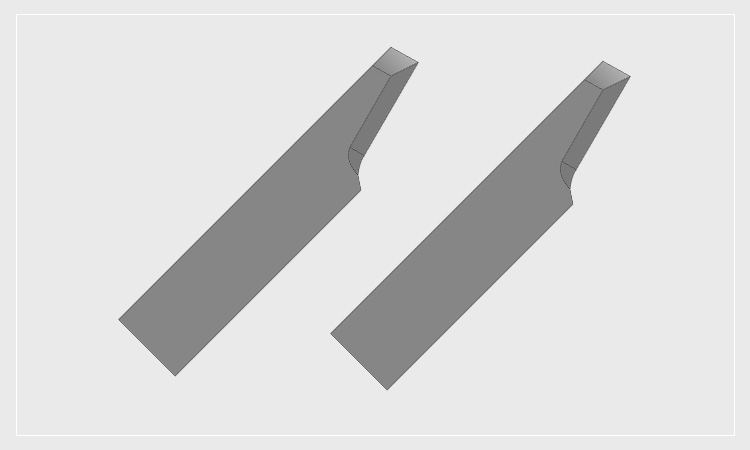

Small Sharp Blades

Product application

Application: The blades are perfect for cutting cloth, leather, textile and apparel fabrics, sample cloth materials, leather PU materials, car seat cushions, etc.

tungsten carbide blades
tungsten carbide slitter blades

introduction of the factory

Chengdu Passion Precision Tool Co.,Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of cutter.
Passion as strong technical force, complete equipment, advanced technology and superior quality products. We use imported high-quality steel for our products, and employ a number of cutter experts, who successfully researched and developed products with high toughness, high durability, high wear resistance and good sharpness.

carbide steel blade (2)
tungsten carbide cutting blades
tungsten carbide blade cutter chinese
tungsten carbide round blade
tungsten carbide industrial knife blades
tungsten blade

Parameter characteristics of the product

Product Nume ATOM Blade
Material 100% raw tungsten carbide
CUTTER BRAND ATOM
Cutting depth approx. 6 mm
KNIFE TYPE Flat, Oscillating blade
REPLACEMENT Yes

Specification

Code Description Recommend use Photo
01030728 Cutting depth approx. 6 mm
Original no. 01030728 / (HV1600)
Texon, fiber board, for thickness up to 3 mm,
6 mm sole leather, high cutting speeds, 2.5 mm radius		 Texon, fiber board
6 mm sole leather		 image3
01030729 Cutting depth approx. 6 mm
Original no. 01030729 / (HV1600)
Texon, fiber board, for thickness up to 3 mm,
6 mm sole leather, high cutting speeds, 2.5 mm radius		 Texon, fiber board
6 mm sole leather		  image4
01030730 Cutting depth approx. 8 mm
Original no. 01030730 / (HV1600)
Elastic fabrics, even multilayers. Suede and soft leather. High speed		 Elastic fabrics, even multilayers.
Suede and soft leather		  image5
01030731 Cutting depth approx. 11 mm
Original no. 01030731 / (HV1600)
Elastic fabrics, even multilayers. Suede and soft leather. High speed		 Elastic fabrics, even multilayers.
Suede and soft leather		  image6
01030773 Cutting depth approx. 11 mm
Original no. 01030773 / (HV1600)
Very rigid materials, sole leather, asbestos free, tang graphite,
for thickness up to 10 mm, ideal for small radius		 Very rigid materials,
sole leather,
asbestos free,
tang graphite,		  image7
01030774 Cutting depth approx. 3 mm
Original no. 01030774 / (HV1600)
Max. 1 mm leather. The edge is exactly on the axis.
Perfect execution of small details and small curving radius with high cutting speed		 Max. 1 mm leather.
The edge is exactly on the axis.		  image8
01030775 Angle: 45° – 5°
20 shore rubber 8 mm thick,
medium density foam 15 mm thick,
leather up to 5 mm thick, 18 m/min max.		 20 shore rubber 8 mm thick,
medium density foam 15 mm thick,
leather up to 5 mm thick
18 m/min max.		  image9
01030776 Leather for belts, saddlery, leather goods,
texon for insoles max velocity 40mt\m radius of curvature > 15mm leather 5mm. thickness max velocity  20 mt\m
0°-4°30′		 Leather for belts,
saddlery,
leather goods,		  image10
01030782 Cutting depth approx. 12 mm
Original no. 01030782 / (HV1600)
Leather
max. thickness 1.5 mm, ideal for 1 mm radius		 Leather  image11
01030793 Cutting depth approx. 10 mm
Original no. 01030793 / (HV1600)
Very rigid materials, sole leather, asbestos free, tang graphite,
for thickness up to 10 mm, high cutting speeds		 Very rigid materials,
sole leather, asbestos free,
tang graphite,		  image12
01030910 Product Code: 01030910
Length: 28
Height: 5.5
thickness: 1.0
Angle: 24°		 Leather  image13
01030911 Product Code: 01030911
Length: 28
Height: 5.5
thickness: 1.0
Angle: 12°		 Leather  image14
01033840 Cutting depth approx. 7 mm
Original no. 01033840 / (HV1400)
Soft leathers,
thickness up to 7 mm, min. radius 3 mm		 Soft leathers  image15
01033841 Cutting depth approx. 7 mm
Original no. 01033841 / (HV1400)
Soft leathers,
thickness up to 7 mm, min. radius 3 mm		 Soft leathers  image16
01033855 Cutting depth approx. 10 mm
Original no. 01033855 / (HV1400)
Very rigid materials, sole leather, asbestos free, tang graphite,
for thickness up to 5 mm		 Very rigid materials,
sole leather,
asbestos free,
tang graphite,		  image17
01033856 Cutting depth approx. 12 mm
Original no. 01033856 / (HV1400)
Very rigid materials, sole leather, asbestos free, tang graphite,
for thickness up to 5 mm, ideal for small radius		 Very rigid materials,
sole leather,
asbestos free,
tang graphite,		  image18
01033857 Cutting depth approx. 10 mm
Original no. 01033857 / (HV1600)
Angle: 25°- 0°
Very rigid materials, sole leather, asbestos free, tang graphite,
for thickness up to 5 mm		 Very rigid materials,
sole leather,
asbestos free,
tang graphite,		  image19
01033858 Product Code: 01033858
Length: 28
Height: 5.5
thickness: 0.6
Angle: 27°		 Leather  image20
01033925 Product Code: 01033925
Tunit, rubber, derivatives with thickness up to 6 mm
Angle: knife bifilar sword 60°		 Tunit, rubber, derivatives  image21
01039892 Product Code: 01039892
Length: 28
Height: 5.5
thickness: 0.6
Angle: 40°		 Leather  image22
01039893 Cutting depth approx. 8 mm
Original no. 01039893 / (HV1600)
Angle: 35°-20°
Suitable to cut cloth even eleastic
with small curving radiuses		 Suitable to cut cloth even eleastic  image23
01039894 Cutting depth approx. 11 mm
Original no. 01039894 / (HV1600)
Angle: 25° unique sword
Leather, cardboard, thin polyester.
Sharp edges execution		 Leather,
cardboard,
thin polyester.		  image24
01039895 Cutting depth approx. 9 mm
Original no. 01039895 / (HV1600)
Angle: 30° unique sword
Sole leather, cardboard, thin polyester.
To make sharp edges		 Leather,
cardboard,
thin polyester.		  image25
01039896 Product Code: 01039896
Length: 28
Height: 5.5
thickness: 0.6
Angle: 24°		 Leather  image26
