Wood Working Indexable Carbide Inserts Planer Knives
Product Introduction
“PASSION” Indexable insert knife using micron-level granular raw materials, low-pressure sintering, ensuring high wear resistance and high bending strength of the product, using special equipment to create high-quality products through 23 procedures. The large surface is mirror-polished, and the cutting edge has undergone 3 times of differential treatment, and there is no wave under a 100x magnifying glass, which prolongs the use time of the product. Provide customers with solutions for processing different materials. Applicable equipment: Woodworking turning tool, double-sided planer, four-sided planer, vertical shaft machine Processing range: solid wood, plywood, dense version, acrylic, plastic, etc.
Specifications
| Product Name | Indexable knives | Surface | Mirror Polishing |
| Material | Tungsten Carbide | MOQ | 10 |
| Application | Solid Wood, MDF HDF Surface Planning | Logo | Accept Customized Logo |
| Hardness | 91-93HRA | Customized Support | OEM, ODM |
Specification

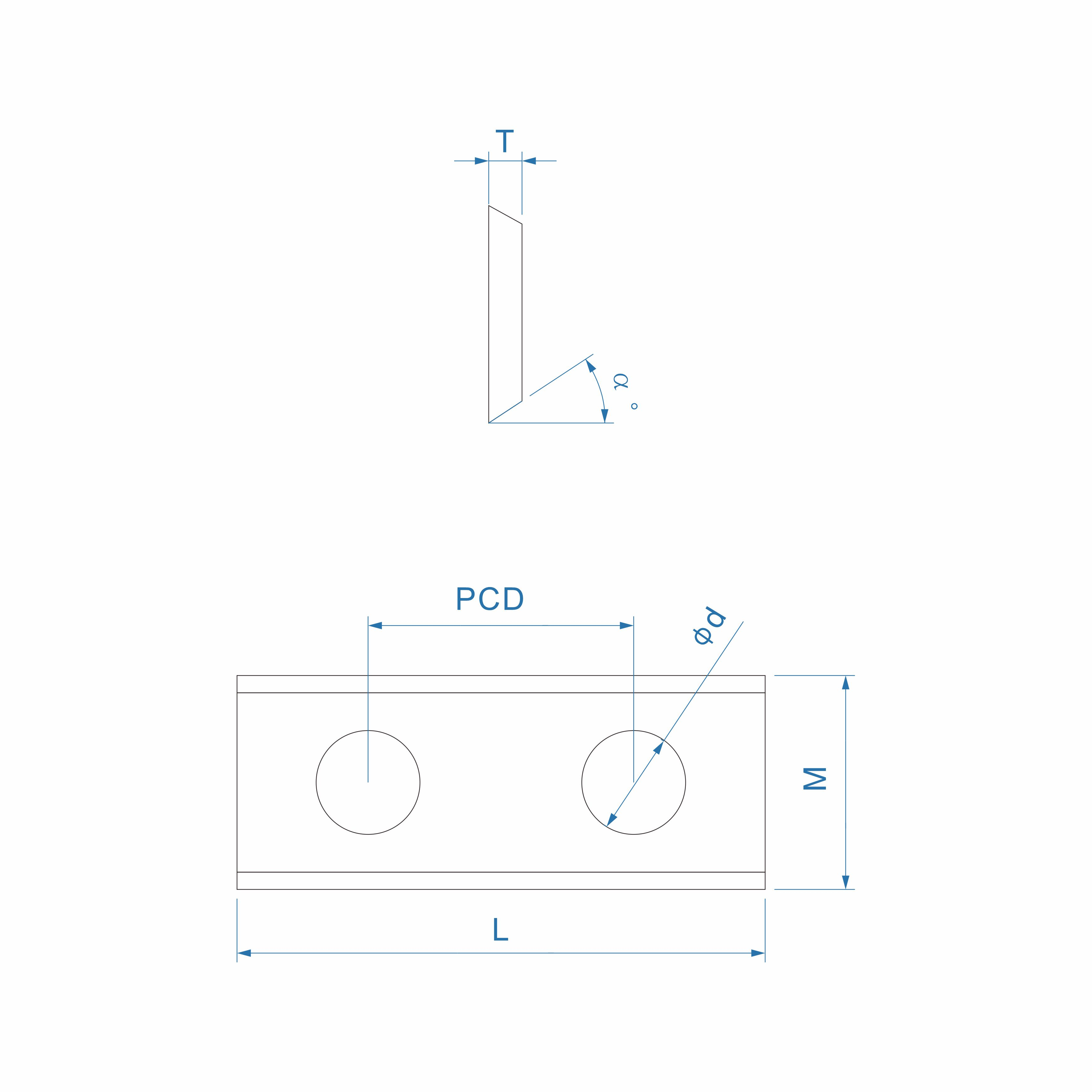

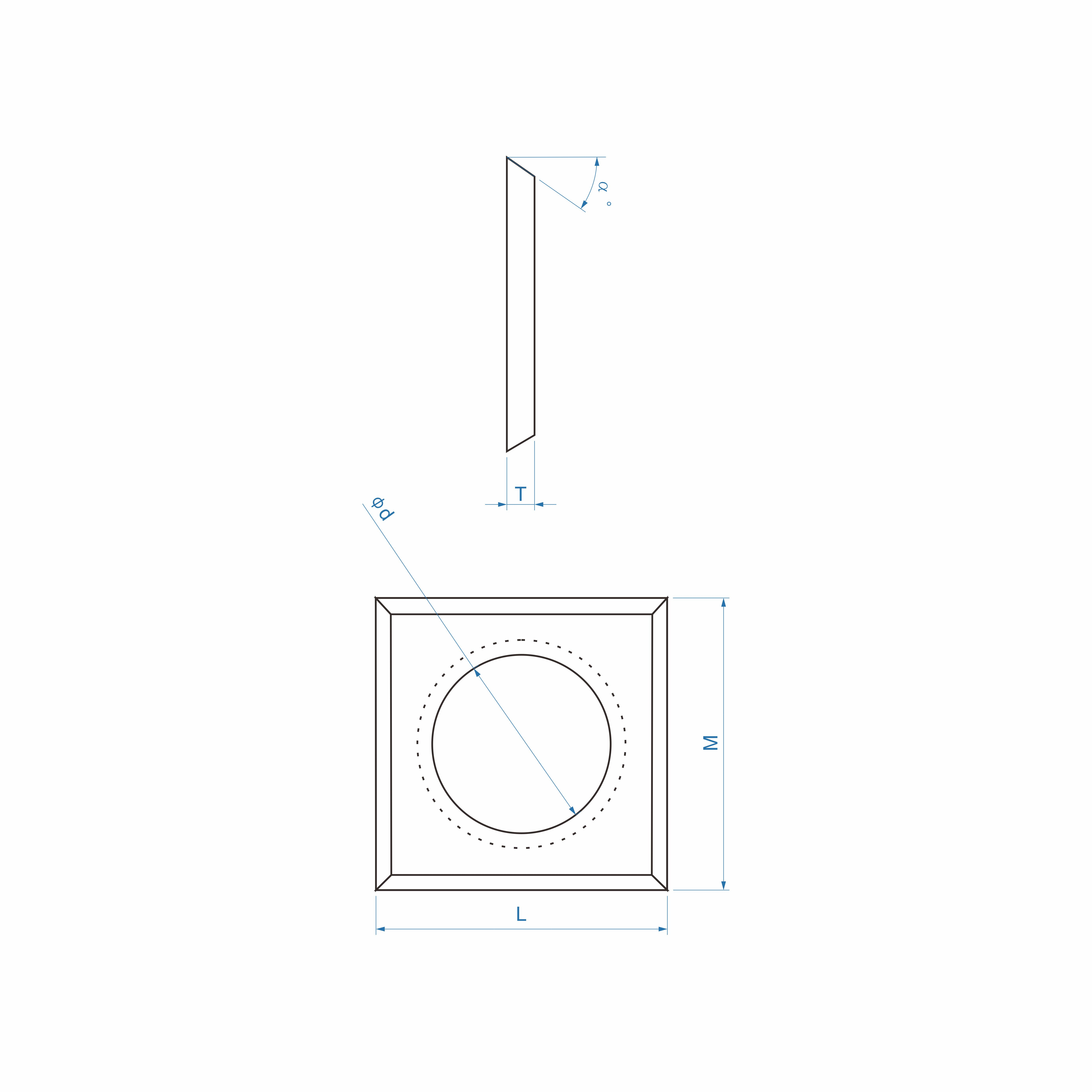

| L | W | T | PCD | D | α° |
|
| 14 | 14 | 2 | / | 6.4 | 30 | |
| 15 | 15 | 2.5 | / | 6.4 | 30 | |
| 25 | 12 | 1.5 | 14 | 4.1 | 35 | |
| 30 | 12 | 1.5 | 14 | 4.1 | 35 | |
| 35 | 12 | 1.5 | 26 | 4.1 | 35 | |
| 40 | 12 | 1.5 | 26 | 4.1 | 35 | |
| 50 | 12 | 1.5 | 26 | 4.1 | 35 | |
| 60 | 12 | 1.5 | 26 | 4.1 | 35 | |
| NOTE：Customized dimension is also welcomed | ||||||
Why Choose Us
* Smoother Finish with no tear-out. The combined shear and staggered cut eliminates tear-out and leaves a glossy surface finish on even highly figured hardwood.
* Noise is dramatically reduced as spiral cutter head allows a few knives to cut in a staggered way.
* The inserts are made of sintered tungsten carbide which is much harder than high-speed steel. Each insert has four edges. More longer life .
* Easy to change. The knives are precision ground to a tolerance of +/-0.0004" or +/-0.01mm and are interchangeable. Loosen the screw, rotate 90° for a new edge, tighten the insert in minutes.
* Dust extraction is easier. Spiral cutter head produces thinner and shorter chips.
* Low cost to use. Spiral cutter heads produce a smoother finish, reduce or eliminate sanding work, don't require sharpening.
About Factory
Chengdu Passion is a comprehensive enterprise specialized in designing, manufacturing and selling all kinds of industrial and mechanical blades, knives and cutting tools for over twenty years. The factory is located in panda’s hometown Chengdu City, Sichuan Province.
The factory occupies almost three thousand square meters and includes over one hundred and fifty stuff. “Passion” has experienced engineers, quality department and completed production system, which includes press , heat treatment, milling, grinding and polishing workshops.
“Passion” supplies all kinds of circular knives, disk blades, knives of steel inlaid carbide rings, re-winder bottom slitter, long knives welded tungsten carbide, tungsten carbide inserts, straight saw blades, circular saw knives, wood carving blades and branded small sharp blades. Meanwhile, the customized product is available.
